icotek

Cable Entry System solutions
CABLE ENTRY SYSTEM KT SYSTEM

CABLE ENTRY SYSTEM KT SYSTEM

KT Split Cable Entry Frames- Flexible split-frame system for routing and sealing pre-terminated cables, hoses, and conduits. Supports cable diameters up to 75 mm with protection up to IP66 / UL Type 4X. KT Split Cable Glands- Split cable glands for cables with or without connectors. Suitable for cable diameters 1–35 mm and offering protection up to IP66/IP68 / UL Type 4X. DB Distribution Box- Enables 360° cable distribution from a central entry point. Routes, seals, and strain-relieves cables from 1–15 mm in accordance with EN 62444. KT Cable Grommets- Versatile cable grommets for sealing and strain relief in cable entry frames, split cable glands, and distribution boxes. Available in split and solid versions with protection up to IP66/IP68 / UL Type 4X. IMAS-CONNECT™ Modular Adapter System- A flexible adapter system for integrating connectors, cables, and hoses into a single cable entry interface. Compatible with icotek cable entry frames and offering protection up to IP66.

Cable entry systems for with connectors QT system

Cable entry systems for with connectors QT system

Split Multi Cable Transit Frames- KEL-QUICK is a compact cable entry system for routing and sealing pre-terminated cables, conduits, and pneumatic hoses. It features tool-free installation, supports cable diameters from 1–29 mm, and provides IP54 protection. Split Cable Glands- QVT-CLICK is a circular split cable gland designed for pre-terminated cables and conduits. Its compact design, flexible grommet options, and IP54 sealing make installation quick and efficient. Split Plug-in Cable Entry Plates- KEL-QTA cable entry plates enable fast routing and sealing of cables with or without connectors. Compatible with QT grommets, they offer flexible cable management with IP54 protection. Cable Grommets for QT Systems- QT Cable Grommets provide secure IP54 sealing for cable diameters from 1–15 mm. Available in multiple configurations, they maximize cable density and simplify cable organization. IMAS-CONNECT™ Modular Adapter System- IMAS-CONNECT™ integrates connectors, couplers, and hose fittings into a single cable entry interface. Compatible with QT grommets, it offers flexible connectivity solutions with protection ratings up to IP66.

Cable Entry System Without Connector UT System

Cable Entry System Without Connector UT System

UT Cable Grommet- The UT Cable Grommet is a U-shaped split cable entry solution for routing pre-terminated and standard cables with diameters from 4–11 mm. Designed for enclosure wall thicknesses of 1–4 mm, it enables quick installation without removing connectors, making it ideal for control panels and industrial enclosures. UT-DT Membrane Cable Grommet- The UT-DT Membrane Cable Grommet provides a flexible solution for routing non-terminated cables while maximizing cable density. Suitable for wall thicknesses of 1–4 mm, it can be installed in plastic, metal, and die-cast aluminium enclosures for efficient cable management.

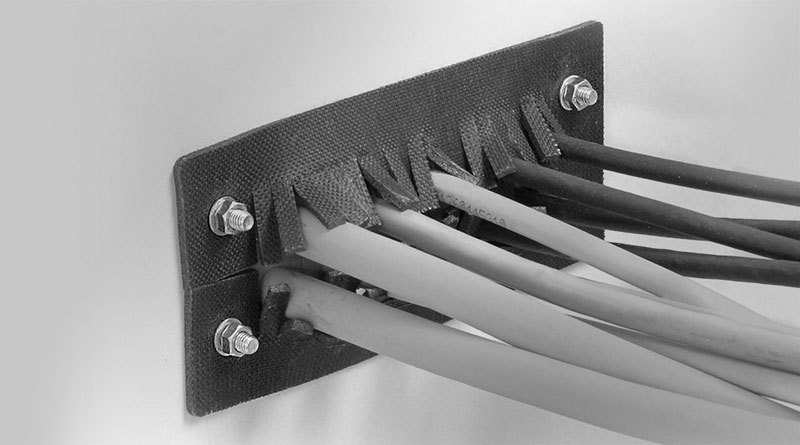

Cable entry systems for railway technology

Cable entry systems for railway technology

icotek cable entry systems comply with the European railway fire safety standard EN 45545-3, meeting the E45 and EI30 classifications for fire resistance. Designed to enhance passenger and staff safety, these solutions help maintain the integrity of fire barriers and support compliance with stringent railway safety requirements during onboard fire incidents.

Download
Cable entry systems for cables without connectors

Cable entry systems for cables without connectors

KEL-DPU Cable Entry Plates- Compact cable entry plates for routing and sealing non-terminated cables (3.2–20.5 mm). Featuring a robust polypropylene frame with elastomer sealing, they provide excellent strain relief and protection up to IP66/IP68 and UL Type 12/4X. KEL-DPZ Series- The KEL-DPZ Round, KEL-DPZ-CLICK, and KEL-DPZ gland plates offer flexible cable routing with high cable density and protection up to IP66/IP68 and UL Type 12/4X. Available in metric sizes M25–M63, they are ideal for compact industrial enclosures. KEL-DPR & KEL-DPFR- The KEL-DPR allows cable routing from both sides with protection up to IP65, while the KEL-DPFR features pyramid-shaped membranes for a wide cable diameter range and protection up to IP66 / UL Type 12/4X. KEL-SCDP Plug-In Cable Entry Grommet- A flexible cable entry solution for single cables, designed for direct installation into M12–M50 cut-outs. Provides reliable IP65 protection and quick installation. Flexible Cable Entry Systems- Pyramid-shaped cable entry grommets offer secure sealing and flexible cable routing for diameters from 3 mm to 115 mm. Available in versions with protection ratings up to IP66/IP68 / UL Type 12/4X, including UV and weather-resistant models for outdoor applications. KEL-DPZ-KX/KL Cable Entry Plate- A high-density cable entry plate that enables multiple cables to be routed through limited space while maintaining IP65/IP66 protection. Its stainless-steel frame and elastomer membrane provide reliable sealing, strain relief, and long-term durability.

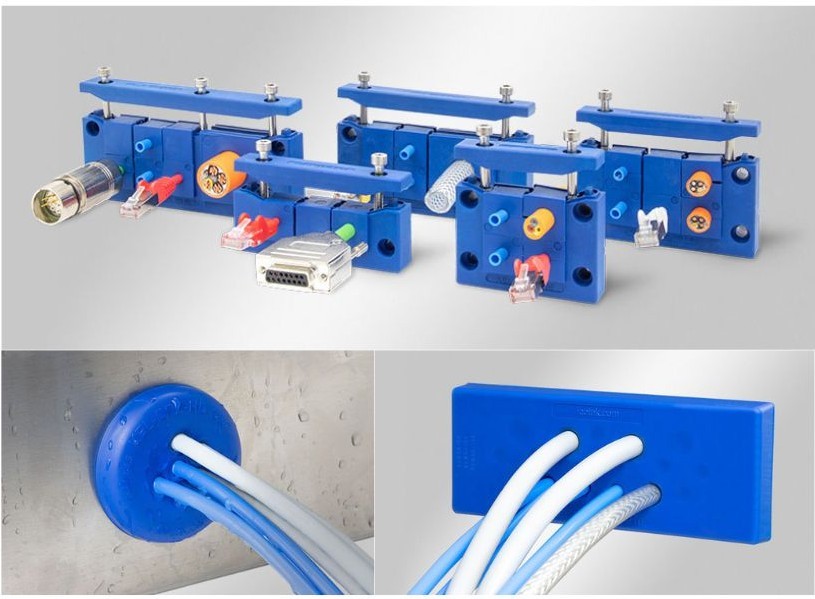

Hygienic Cable Entry Solutions for process Industries

Hygienic Cable Entry Solutions for process Industries

icotek offers specialized cable entry systems designed for hygienic and demanding industrial environments. KEL-ER-BL is a split cable entry system for cables with and without connectors, featuring a distinctive blue signal color ideal for food packaging, food processing machinery, and pharmaceutical applications. KEL-DPZ-HD and KEL-DPU-HD hygienic cable entry plates are engineered for food processing and packaging equipment. Featuring a smooth hygienic surface, robust frame construction, and enhanced strain relief, they support metric thread sizes from M32 to M63. The KEL-DPU-HD 24is designed to fit standard 24-pin industrial connector cut-outs, ensuring easy integration and reliable performance in hygienic environments.

Cable entry systems for the use in cleanrooms

Cable entry systems for the use in cleanrooms

icotek cable entry systems are designed for use in cleanroom environments where airborne particle control is critical. Certified for Cleanroom Class 1 according to ISO 14644-1, these solutions help maintain the highest cleanliness standards while ensuring reliable and efficient cable management in sensitive applications.

Download
