A Router is a device that connects different networks and sends data to the right place. It helps multiple devices like phones, computers, and smart devices share the same Internet connection.

Rut 200

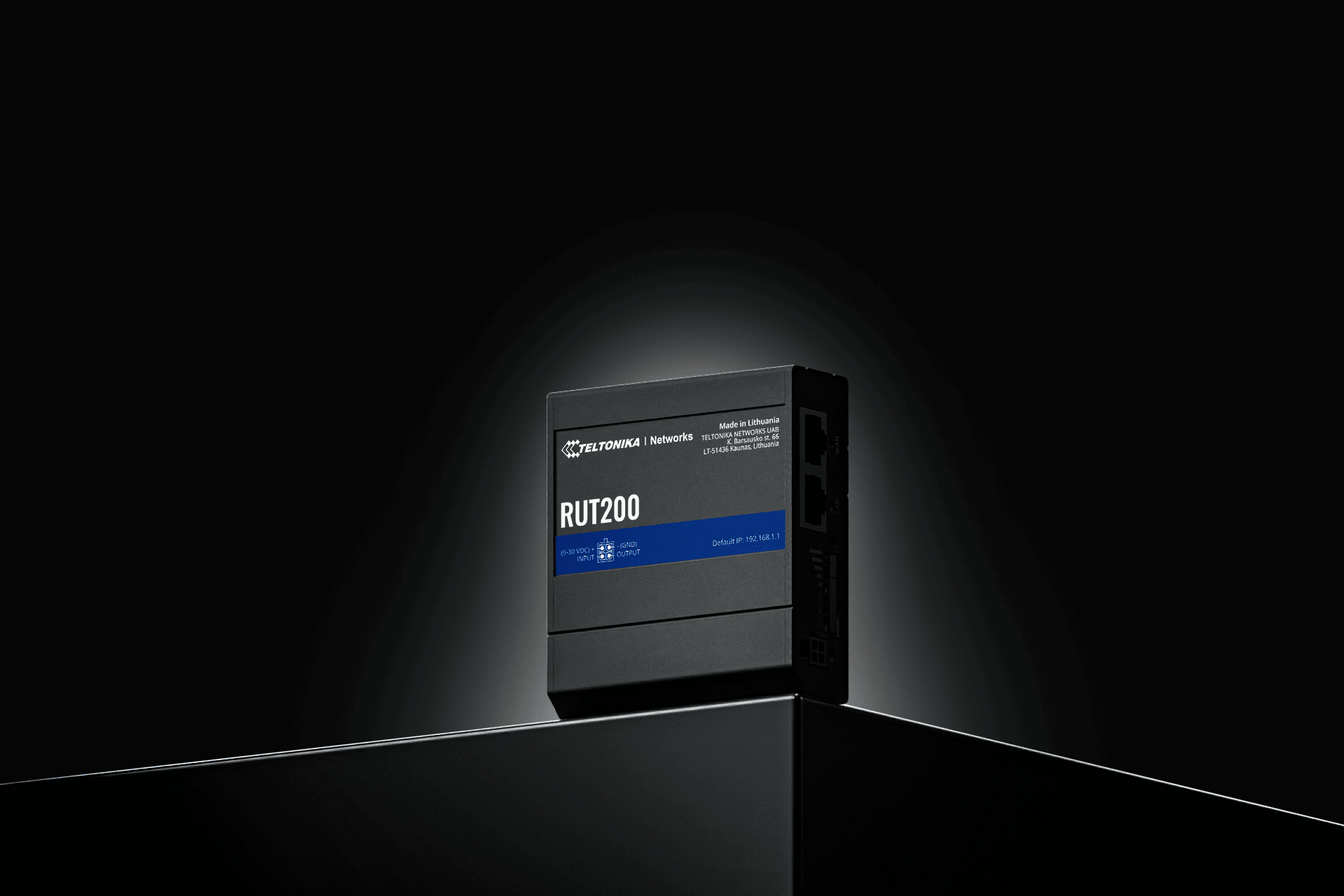

RUT200 is a compact industrial cellular router designed to deliver reliable, mission-critical connectivity in harsh industrial environments such as automation, transportation, and manufacturing. With built-in remote management capabilities, the RUT200 ensures stable and secure communication for industrial applications.

RUT200 Industrial Router: Hardware Overview

The RUT200 is a compact, rugged industrial router designed to deliver reliable connectivity in demanding environments. It supports Mobile 4G/LTE (Cat 4), 3G, and 2G networks, ensuring flexible and stable mobile internet access. The router is powered by a Media tek 580 MHz MIPS 24KEc CPU, paired with 128 MB RAM and 16 MB flash storage, providing sufficient processing power for industrial IoT and networking applications.

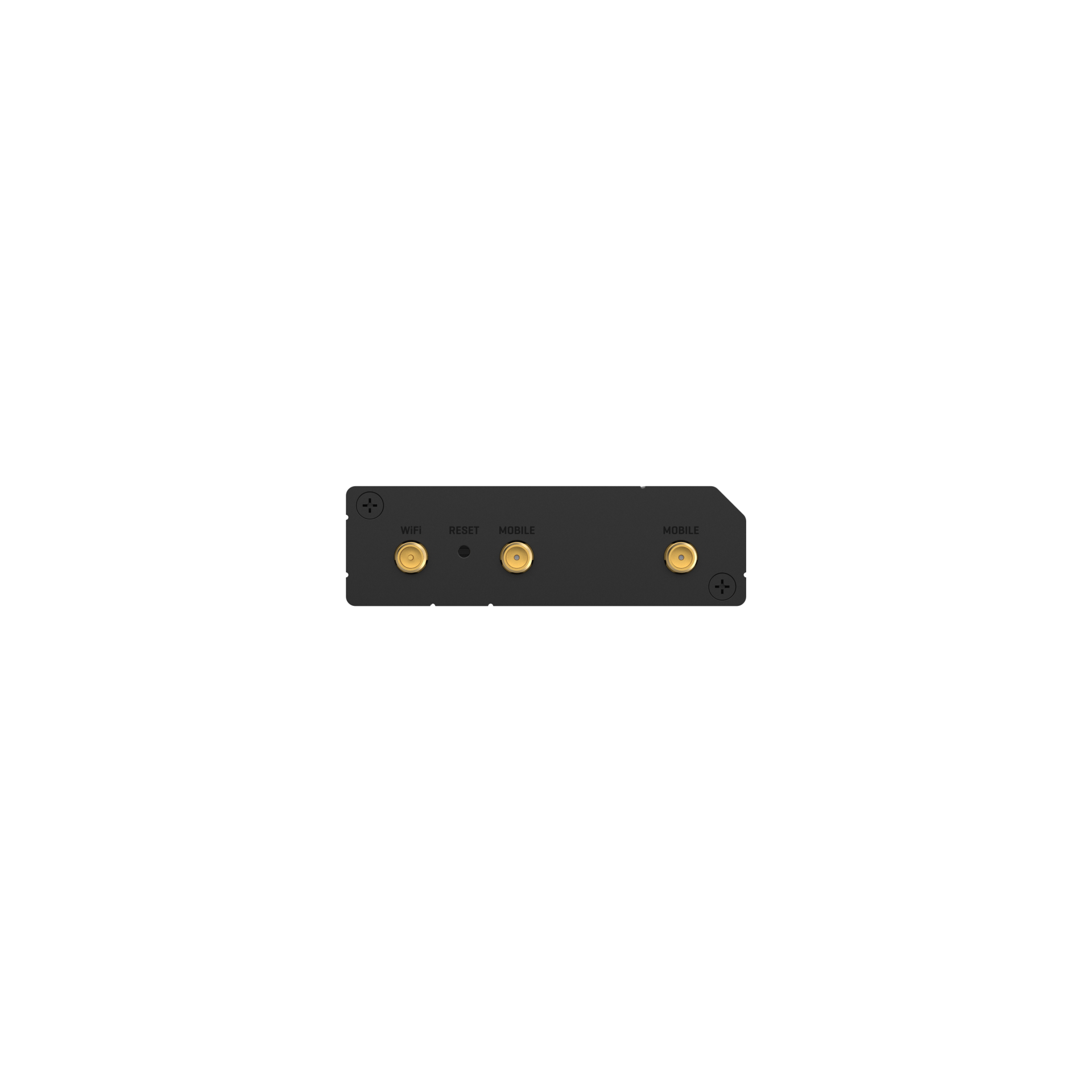

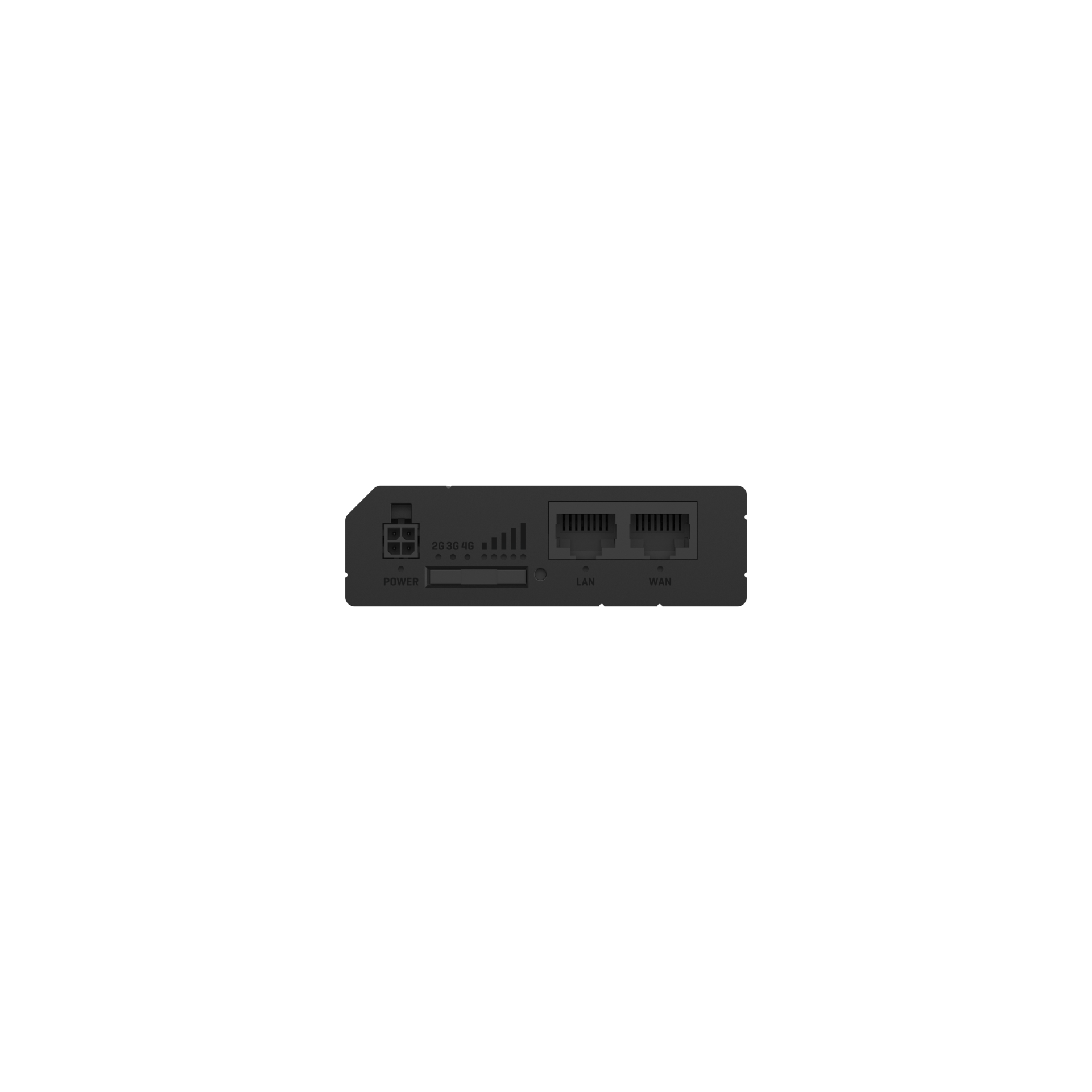

For power, it uses a 4-pin socket supporting 9–30 VDC, and includes 1 external SIM holder (2FF) for easy cellular network setup. Connectivity options include 2 SMA antenna connectors for mobile networks, 1 RP-SMA connector for Wi-Fi, and two 10/100 Mbps Ethernet ports one WAN (configurable as LAN) and one LAN. Wi-Fi functionality is available via IEEE 802.11b/g/n, which can operate as an Access Point (AP) or Station (STA).

The router also features digital input and open-collector output ports, allowing integration with industrial sensors or alarm systems. LED indicators display connection type, signal strength, Ethernet activity, and power status, providing clear visual feedback for quick monitoring.

Built for harsh environments, the RUT200 operates in temperatures ranging from -40°C to 75°C and is housed in a durable aluminium case with DIN rail mounting, complemented by plastic panels for easy installation. Its compact size (83 × 25 × 74 mm) and lightweight design (125 g) make it ideal for industrial setups where space is limited.

Internet & WAN Compatibility

Ethernet

WAN

1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX

LAN

1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Advanced Software and Connectivity Features

The RUT200 runs on Rut OS, an OpenWrt-based Linux operating system, offering flexibility, stability, and advanced customization for industrial applications. Mobile features such as Auto APN configuration and band locking ensure seamless cellular connectivity.

It supports a wide range of network protocols, including TCP, UDP, IPv4/IPv6, ICMP, NTP, DNS, HTTP/S, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP/PP PoE, DHCP, and Telnet. Additional capabilities like network failover, VLAN support, QoS, and load balancing guarantee stable performance in critical scenarios.

Managing the router is straightforward with multiple interfaces, including web UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, and RMS. Connection monitoring features like ping reboot, periodic reboot, and LCP/ICMP link inspection help maintain uninterrupted connectivity.

The RUT200 also integrates with leading cloud platforms such as RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, and Thing Worx, enabling remote management, monitoring, and firmware updates. Its SMS features allow automated communication and alerts via HTTP, email, SMPP, SMS-to-SMS, with options for scheduled messages and autoreply.

Other supported services include DDNS, VRRP, Wake On LAN (WOL), web filtering, UPnP, and traffic logging, providing comprehensive control over your network.

Wi-Fi

Supports WPA2-Enterprise (PEAP), WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, and OWE authentication methods. Encryption options include AES-CCMP, TKIP, and auto-cipher modes. Additional security features include client isolation, EAP-TLS with PKCS#12 certificates, the ability to disable automatic reconnection, and support for 802.11w Protected Management Frames (PMF).)

802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)

Mobile module

4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps

Applications

The RUT200 industrial router is specifically designed to meet the demands of IoT, automation, transportation, and remote monitoring through its combination of reliable connectivity, flexible interfaces, and industrial-grade hardware:

1. Industrial IoT – With 4G/LTE, 3G, 2G, and Ethernet connectivity, the RUT200 can connect sensors, machines, and controllers across factories or production sites. Its digital input/output ports allow integration with industrial devices, while Rut O S software supports protocols like MODBUS, MQTT, and JSON-RPC, enabling seamless IoT communication and data exchange.
2. Automation – The router’s robust CPU, ample RAM, and flash storage, along with VLAN, QoS, and network failover, ensures continuous and stable network performance for automated systems. Automated connection monitoring and remote management reduce downtime and allow control of industrial processes from anywhere.
3. Transportation – For vehicles, trains, or remote fleets, the RUT200 provides mobile network support with Auto APN and band locking, ensuring consistent connectivity even while moving. Its rugged design and wide operating temperature range (-40°C to 75°C) make it ideal for harsh transportation environments.
4. Remote Monitoring – The RUT200 integrates with cloud platforms like RMS, Azure IoT Hub, Cumulocity, and Thing Worx, enabling real-time device monitoring, remote firmware updates (FOTA), and alerts via SMS, email, or web services. This ensures that managers can track equipment, receive notifications, and troubleshoot issues without being on-site.

Conclusion

In short, the RUT200 acts as a reliable bridge between industrial devices and the internet, providing secure, continuous, and manageable connectivity that is essential for modern industrial IoT, automated systems, transportation networks, and remote monitoring solutions.
