A switching power supply, commonly referred to as a Switched-Mode Power Supply (SMPS), is an electronic power conversion system that efficiently converts AC input power into a regulated DC output by employing high-frequency switching and control techniques. This approach significantly reduces power losses and improves efficiency compared to traditional linear power supplies.

A Switched-Mode Power Supply (SMPS) efficiently converts high-voltage AC input into regulated low-voltage DC output using high-frequency switching. Its high efficiency reduces power loss and heat generation, while precise voltage regulation ensures reliable operation of sensitive electronic components. The compact and lightweight design enables use in space-constrained devices, and the wide input voltage range allows global compatibility. Due to these advantages, SMPS is widely used in computers, consumer electronics, industrial automation, and telecommunications equipment.

Applications Enabled by SMPS Technology

• Computers: Supplies regulated power to motherboards, processors, memory, and storage devices.
• Consumer Electronics: Used in chargers, adapters, televisions, gaming consoles, and audio systems.
• Industrial Automation: Powers PLCs, motor drives, CNC machines, and control panels with high reliability.
• Telecommunications: Ensures stable power for routers, switches, base stations, and networking equipment.

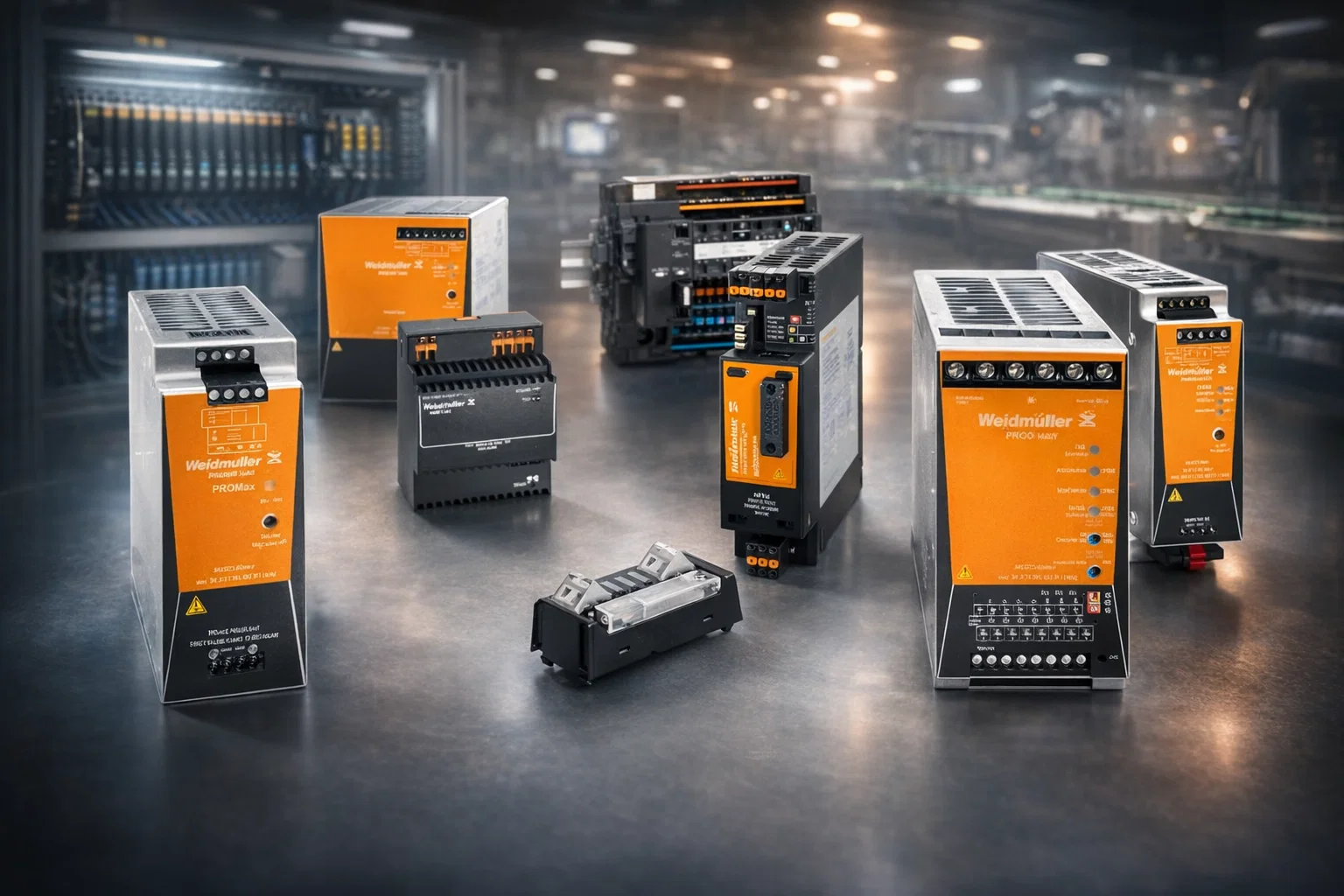

Weidmüller offers a wide range of switched-mode power supplies with various voltage, current, and power ratings. These variants provide flexibility in selection, making them well suited for diverse industrial and application-specific requirements. Their robust design, high efficiency, and reliable performance ensure suitability for demanding industrial environments. Through this analysis, it is evident that Weidmüller SMPS solutions are highly suitable for industrial applications.

PROtop

With increased system availability and high MTBF values, PROtop power supply systems are emerging as leaders in their class. The enhanced communication capabilities enable effective device control, real-time status monitoring, and seamless integration into the Industrial Internet of Things (IIoT). PROtop switched-mode power supplies deliver maximum system availability while maintaining comparatively low maintenance costs, making them an ideal choice for modern industrial applications.

High Efficiency: Up to 95.3% for long-term energy savings and reduced heat.

Dynamic Performance: DCL technology handles peak loads reliably with high dynamic range.

Condition Monitoring: Integrated communication modules enable predictive maintenance.

Parallel Connectivity: ORing MOSFETs allow direct parallel connection for redundancy.

Harsh Environment Ready: Certified for explosive atmospheres and demanding industrial use.

PROtop SMPS Applications

• Industrial Automation: PLCs, motor controllers, CNC machines.
• High-Availability Systems: Parallel connection with ORing MOSFETs; predictive maintenance via communication modules.
• Harsh Environments: Certified for explosive atmospheres; reliable operation across wide temperatures.

PROmax

        PROmax power supplies stand out for their robustness and reliability. They handle continuous overloads up to 20% and short-term peak loads of 300%, even at high control cabinet temperatures. With high scalability and stable performance across a wide temperature range, they are ideal for demanding automation applications.

Despite their impressive capabilities, PROmax units feature a compact design that fits into almost any control cabinet. For customized solutions, they can be combined with diode and CAP modules or uninterruptible DC UPS units to meet specific application requirements.

 Wide Temperature Range: Safe operation up to 60 °C and reliable start-up at -40 °C.

 High Power Reserves: Handles continuous overloads and transient peak loads with ease.

 Compact Design: Low width makes it ideal for confined spaces.

PROmax SMPS Applications

• Industrial Automation: Handles demanding loads in PLCs, CNC machines, and robotics.
• Compact Systems: Low width for installation in confined control cabinets.
• High Power Performance: Continuous overload up to 20%, peak loads up to 300%.
• Scalable Solutions: Can be combined with diode, CAP, or DC UPS modules for customized setups.
• Temperature Resilience: Operates safely from -40 °C to 60 °C.

PROeco 2nd Generation

The new PROeco 2nd generation power supplies are designed to maximize system availability in automation applications. The twelve-part series delivers high performance, efficiency, and broad system compatibility, making it ideal for diverse industrial environments.

A three-colour LED simplifies service activities and the integration of PROeco devices. The series is compatible with DC UPS, electronic load monitoring, and diode modules, enabling the setup of comprehensive power management systems. Its compact design makes it perfect for applications with limited space, such as flat control cabinets.

Robust and Durable: Reliable performance in demanding environments.

Space & Energy-Saving: Compact design with high efficiency.

Smart Status Diagnosis: Three-colour LED enables rapid service and integration.

Global Compliance: Certified with international approvals for worldwide use.

PROeco SMPS Applications

• Industrial Automation: Powers PLCs, sensors, and small machinery.
• Compact Control Cabinets: Ideal for space-constrained setups due to flat design.
• Power Management Systems: Compatible with DC UPS, diode modules, and electronic load monitoring.
• General Electronics & Automation: Reliable supply for diverse automation devices requiring high availability.

INSTA POWER

         Insta power compact, cost-effective single-phase switch mode power supplies.These power converters operate reliably in temperatures from -25 °C to +70 °C and support a wide range of input voltages.

With international approvals, they are suitable for deployment across multiple regions. INSTA POWER supplies are perfect for automation systems with low power requirements as well as telecommunications applications, delivering reliable performance wherever they are needed.

Wide Power Range & Compact Design: Ideal for space-constrained installations.

Broad Temperature Range: Reliable operation from -25 °C to +70 °C.

Flexible Voltage Input: Works with a wide range of input voltages for versatile applications.

Applications

 Automation Systems: Ideal for low-power controllers, sensors, and small machinery.

Telecommunications: Powers routers, switches, and network equipment.

General Electronics: Suitable for devices requiring stable DC power in compact spaces.

PRO PM

     Weidmüller’s PRO PM switch mode power supplies are distinguished by their high adaptability, making them suitable for a broad range of requirements and applications. This flexibility comes from a wide selection of models offering output voltages of 5, 12, 24, and 48 V, combined with extensive international approvals.

With a power range of 35 W to 350 W, PRO PM supplies are ideal for powering standard equipment across industrial, automation, and electronic applications, delivering reliable and stable DC power.

Universal Usage: Designed for a wide range of applications.

Power Range: 35 W to 350 W.

Compact Design: Extremely flat, ideal for micro-applications and space-constrained installations.

Apllications

Industrial Automation: Powers PLCs, sensors, and small machinery.

Micro & Compact Devices: Ideal for space-constrained systems or embedded electronics.

Telecommunications: Supports routers, switches, and network devices.

General Electronics: Provides stable DC power for various low- to medium-power equipment.

Conclusion

Weidmüller power supplies including PROtop, PROmax, PRO PM, INSTA POWER, wall-mounted units, and PROeco 2nd generation offer reliability, efficiency, and adaptability across a wide range of industrial and automation applications. With robust performance in harsh conditions, compact designs, high energy efficiency, and extensive international approvals, these solutions ensure stable DC power, high system availability, and long-term operational efficiency.

The PROeco series further enhances automation systems with smart status diagnostics, compatibility with power management modules, and space-saving designs, making it ideal for modern control cabinets and compact installations.

For tailored solutions and technical support on Weidmüller SMPS, connect with Cogent Tech Solutions your trusted partner for reliable industrial power solutions.
