Safety Light Curtains in Industrial Automation

In today’s industrial automation environment, operator safety and machine protection are critical. A Safety Light Curtain is one of the most reliable presence-sensing safety devices used to protect personnel from hazardous machinery while maintaining productivity.

What is a Safety Light Curtain?

A Safety Light Curtain is an electronic safety device that creates an invisible protective barrier using multiple infrared beams transmitted between an emitter and a receiver.

When a person’s hand, arm, or body interrupts the beam field, the system immediately sends a stop signal to the machine control system, preventing accidents and serious injuries.

This makes light curtains an essential component in modern industrial safety systems.

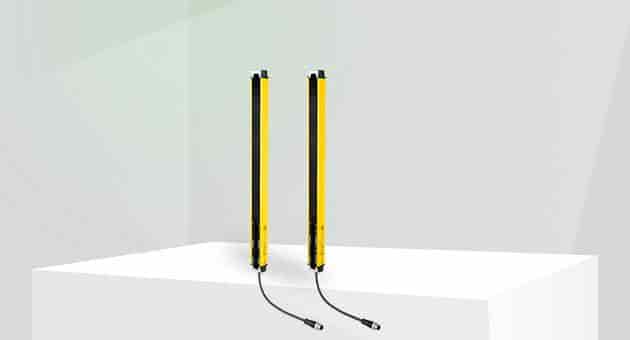

ELCO Safety Light Curtain (TYPE 4) – Advanced Protection for Industrial Machinery

In modern industrial environments, protecting operators from hazardous moving machinery is critical. The Safety Light Curtain (TYPE 4) from ELCO provides reliable, non-contact protection designed to prevent workplace injuries while maintaining production efficiency.

ELCO offers a complete range of safety curtain products, including TYPE 4 and TYPE 2 safety levels, with multiple protective heights and resolutions to suit different industrial applications.

How a Safety Light Curtain Prevents Operator Injuries

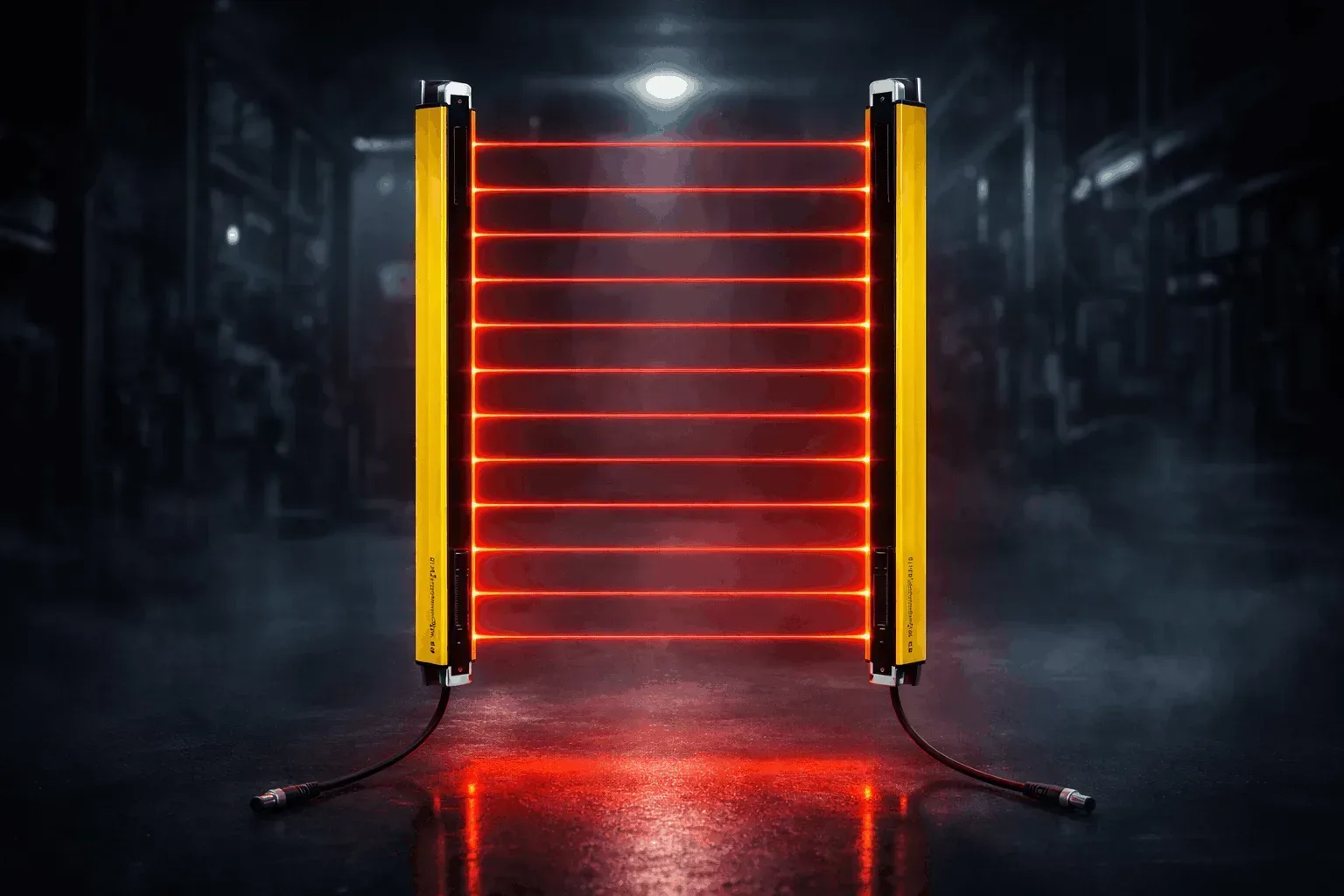

A safety light curtain works by creating an invisible infrared safety barrier between two units:

• Emitter – Transmits multiple synchronized infrared light beams
• Receiver – Detects those beams

When a person’s finger, hand, palm, or arm enters the protected zone, one or more beams are interrupted. The system immediately sends a stop signal to the machine’s safety circuit.

This rapid response:

✔ Stops dangerous machine movement instantly
✔ Prevents contact with moving parts
✔ Reduces risk of crushing, cutting, or amputation injuries
✔ Allows safe access without physical guarding

Unlike mechanical barriers, the light curtain protects operators without restricting workflow, making it ideal for automated production lines.

Safety Mechanism – How It Protects Humans from Machine Accidents

The protection mechanism operates in three critical steps:

Continuous Beam Monitoring

Multiple infrared beams form a protective field. The receiver continuously monitors signal integrity.

Instant Beam Interruption Detection

If even a single beam is blocked:

• The safety output switches off immediately.
• A stop command is transmitted to the machine control system.

 Safe Machine Shutdown

The machine enters a safe stop condition, preventing further motion until the area is cleared and reset.

Because it is a non-contact safety system, there is no delay caused by mechanical components. This ensures extremely fast reaction time, which is essential in high-speed machinery.

ELCO Safety Light Curtain (TYPE 4) – Key Features

 Highest Safety Level – TYPE 4

Designed for high-risk machinery applications requiring maximum protection.

 Detection Range

Maximum detection range up to 16 meters

 Multiple Resolutions

• 14 mm (finger protection)
• 30 mm (hand protection)
• 50 mm (arm/body protection)

Optical Synchronization

Simplified wiring and improved installation efficiency without the need for an independent controller.

 Two-Piece Structure

Emitter + Receiver design reduces system complexity.

Unique Vibration Reduction Design

Ensures stable performance even in high-vibration industrial environments.

Excellent Anti-Light Interference & EMC Performance

Reliable operation in environments with strong ambient light or electrical noise.

 High Protection Rating – IP65

Suitable for harsh industrial environments including dust and water exposure.

Applications

ELCO Safety Light Curtains are widely used in:

• Power press machines
• Robotic work cells
• Assembly lines
• Packaging machines
• CNC equipment
• Automated material handling systems

They can provide:

• Finger protection
• Palm protection
• Arm protection
• Area protection
• Access control for passages

Why Safety Light Curtains Are Essential in Industrial Automation

Machine accidents often occur due to unexpected human interaction with moving components. A safety light curtain acts as a real-time monitoring system that detects human presence instantly and stops the machine before injury occurs.

By integrating ELCO Safety Light Curtains into automation systems, industries can:

✔ Improve workplace safety
✔ Comply with industrial safety standards
✔ Reduce downtime caused by accidents
✔ Protect operators without reducing productivity

Ensuring operator safety in industrial environments is critical to maintaining productivity and compliance with safety standards. Safety light curtains provide a reliable, non-contact protection system that prevents hazardous machine access while allowing smooth workflow.

With advanced engineering from ELCO, ELCO Safety Light Curtains offer high-performance protection through TYPE 2 and TYPE 4 safety categories, multiple resolutions, and robust industrial design.

At Cogent Tech Solutions, we are committed to delivering trusted machine safety solutions that protect your workforce, reduce downtime, and enhance operational efficiency.

Invest in smarter safety today — protect people, protect productivity.
