 Enhancing Industrial Control Systems with Elco IP20 Compact I/O Modules

             In modern industrial automation, reliable input/output (I/O) modules are the backbone of efficient and seamless operations. They ensure that machines, controllers, and automation systems communicate accurately and respond in real time, reducing downtime and improving overall productivity.

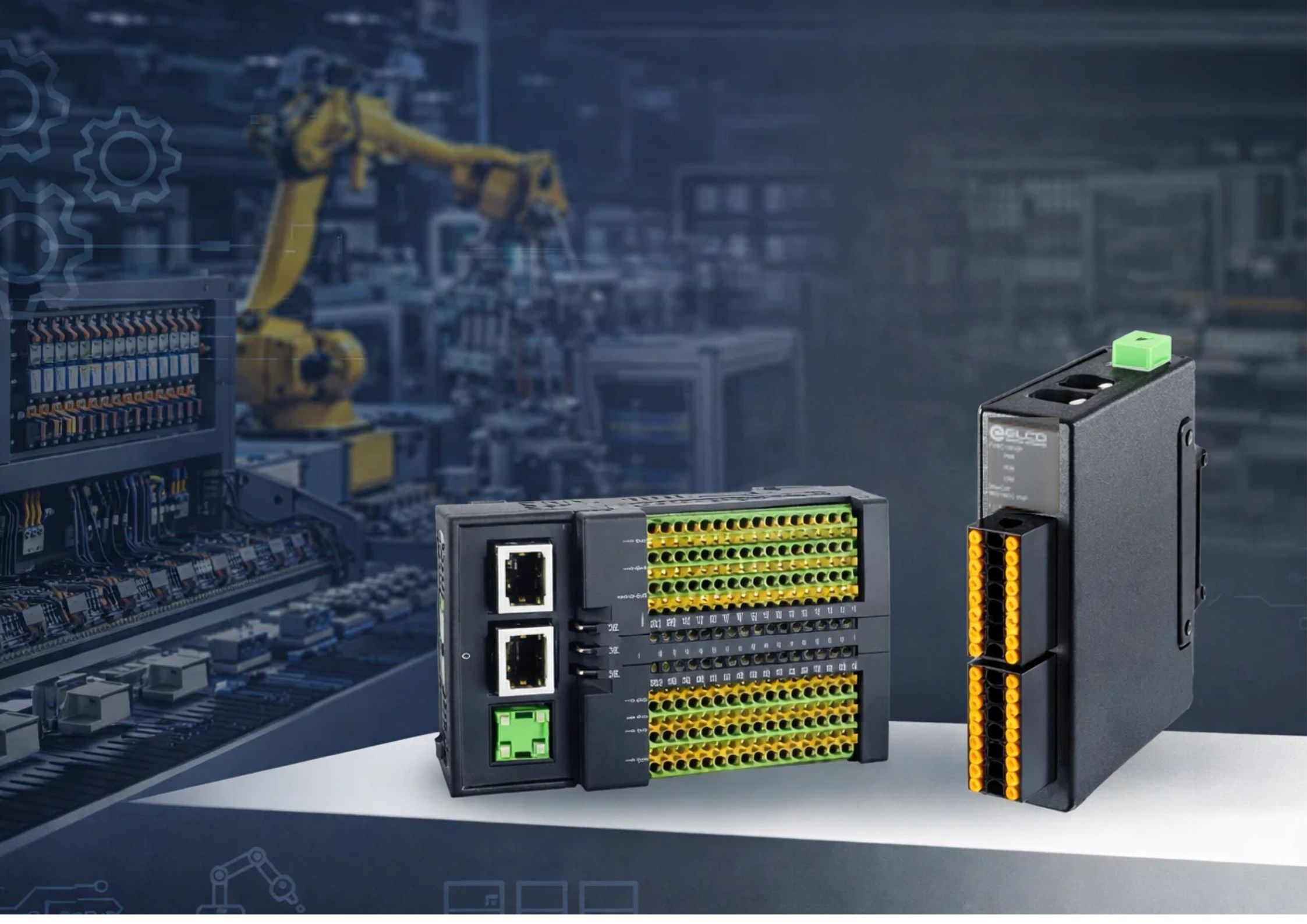

            The Elco IP20 compact I/O modules are engineered to meet these demands, offering high-performance, flexible, and durable solutions for various industrial applications. Available in two distinct series—FB20 with a horizontal design and FV20 with a vertical design—these modules are designed to fit different installation requirements while maintaining consistent reliability and performance.

Elco IP20 Compact I/O Modules – FB20 vs FV20 Series

FB20 Series (Wide-Form, Horizontal Design)

FB20 Series – Flexible, Fast, Reliable
With a horizontal DIN-rail design, the FB20 supports up to 32 digital I/Os, multiple Ethernet protocols, and plug-and-play terminals for quick installation and seamless industrial performance.

• Design & Installation:
  • Horizontal, integrated design with standard 35 mm DIN-rail mounting.
  • Plug-and-play terminal blocks for I/O and power connections.
• Performance:
  • Supports up to 32 digital inputs and outputs.
  • Compatible with multiple mainstream Ethernet bus protocols.
  • Reliable and fast operation for factory floor automation.
• Best Fit:
  • Ideal for control cabinets with sufficient horizontal space.
  • Suited for applications requiring easy access to terminals and quick installation

Communication protocol

CC-LINK IE Field Basic

CC-Link IE Field Network Basic is an Factory Automations network using standard Ethernet. A function by which data is periodically exchanged. among master stations and slave stations (cyclic transmission) using remote I/O signals and remote register.

EtherCAT

          EtherCAT® (Ethernet for Control Automation Technology) is a real-time Ethernet Fieldbus designed for industrial automation, motion control, robotics, and factory applications. Built on the IEEE 802.3 Ethernet standard, it delivers ultra-fast, deterministic, and reliable cyclic data exchange for precision control.

EtherNet/IP

          EtherNet/IP (EIP) is an industrial network protocol for automation that uses standard Ethernet (IEEE 802.3) and TCP/IP or UDP/IP, built on the Common Industrial Protocol (CIP) for object-oriented data exchange, allowing seamless integration of control, data collection, and configuration from the factory floor to enterprise networks, supporting both real-time (implicit) and large data (explicit) messaging for Industry

PROFINET

              With real-time communication capabilities, PROFINET is a leading Industrial Ethernet protocol for seamless device connectivity in automation systems. It ensures reliable data transmission, supports multiple network topologies, and offers easy device configuration and diagnostics.

PROFINET enhances productivity, efficiency, and flexibility in industrial processes empowering smarter, faster, and more reliable automation.

IP rating

IP20

    An IP20 rating means an electrical product has limited protection against solid objects, specifically solids larger than 12mm (like fingers), but offers no protection against water

Housing material

PPE (Polyphenylene Ether) – High-Performance Thermoplastic
PPE is a heat-resistant, dimensionally stable, and electrically insulating thermoplastic ideal for demanding applications. Commonly used in automotive components, electrical housings, and medical devices, it offers strength, low moisture absorption, and excellent resistance to water and chemicals—perfect for harsh or high-temperature environments.

Power Connection

Terminal type

Electrical Terminal – Reliable Connection Point
       A terminal, also known as a terminal block, is a metal component enclosed in a durable plastic casing that serves as a reusable endpoint for electrical conductors. It provides secure and reliable connections for circuits, making it an essential accessory in industrial and electrical applications.

Transmission rate

        A 100 Mbps (megabits per second) transmission rate means 100 million bits of data move across a network connection every second

Signal type

       Digital- A digital signal is a discrete signal representing data as a sequence of distinct, stepped values, typically binary (0s and 1s), unlike continuous analog signals. It uses finite voltage levels (e.g., high for '1', low for '0') to convey information, making it robust against noise and ideal for computers, telecommunications, and data processing.

Number of inputs

      16

      32

      Max. 32

Input Type

       NPN-negative positive negative

       PNP-positive negative positive

Number of outputs

        16

        32

        Max. 16

Output type

        NPN-negative positive negative

        PNP-positive negative positive

FV20 Series (Book-Form, Vertical Design)

FV20 Series – Compact, Efficient, Reliable

Designed for space-critical control cabinets, the FV20 supports up to 32 digital I/Os, multiple Ethernet protocols, and plug-in terminals for fast installation and hassle-free maintenance.

• Design & Installation:
  • Vertical, compact design to optimize space in tight control cabinets.
  • Plug-in terminal blocks simplify wiring and maintenance.
• Performance:
  • Supports up to 32 digital inputs and outputs.
  • Compatible with various Ethernet bus protocols.
  • Ensures consistent, reliable operation in industrial environments.
• Best Fit:
  • Perfect for cabinets with limited horizontal space.
  • Recommended for space-critical applications or retrofitting existing panels.

Communication protocol

EtherCAT

EtherCAT® (Ethernet for Control Automation Technology) is a real-time Ethernet Fieldbus designed for industrial automation, motion control, robotics, and factory applications. Built on the IEEE 802.3 Ethernet standard, it delivers ultra-fast, deterministic, and reliable cyclic data exchange for precision control.

IP rating

IP20

    An IP20 rating means an electrical product has limited protection against solid objects, specifically solids larger than 12mm (like fingers), but offers no protection against water

Housing material

Zinc-Coated Steel – Durable and Corrosion-Resistant
Zinc-coated steel, also known as galvanized steel, features a protective zinc layer that shields the steel from rust and corrosion. This barrier ensures long-lasting durability against moisture, oxygen, and chemicals, making it ideal for industrial and structural applications.

Power Connection

Terminal type

Electrical Terminal – Reliable Connection Point
A terminal, also known as a terminal block, is a metal component enclosed in a durable plastic casing that serves as a reusable endpoint for electrical conductors. It provides secure and reliable connections for circuits, making it an essential accessory in industrial and electrical applications.

Transmission rate

100 Mbps -A 100 Mbps (megabits per second) transmission rate means 100 million bits of data move across a network connection every second

Signal type

    Digital- A digital signal is a discrete signal representing data as a sequence of distinct, stepped values, typically binary (0s and 1s), unlike continuous analog signals. It uses finite voltage levels (e.g., high for '1', low for '0') to convey information, making it robust against noise and ideal for computers, telecommunications, and data processing.

Number of Inputs

        16

        32

        Max. 32

Input Type

         NPN-negative positive negative

         PNP-positive negative positive

Number of Outputs

       16

       32

       Max. 16

Output Type

       NPN-negative positive negative

       PNP-positive negative positive

Why Choose Elco IP20 Compact for Industrial Applications

• High flexibility with configurable I/O combinations.
• Strong protocol compatibility for seamless integration.
• Plug-and-play design ensures faster installation and maintenance.
• Reliable IP20 protection suitable for standard industrial environments.
• Both FB20 and FV20 are robust, making them suitable for factory automation, building automation, and other industrial control applications.

conclusion

The Elco IP20 compact I/O modules, available in FB20 (horizontal) and FV20 (vertical) designs, offer flexible, reliable, and high-performance solutions for industrial automation. With support for up to 32 digital inputs/outputs, compatibility with multiple Ethernet protocols, and plug-and-play terminal connections, these modules ensure fast installation, simplified maintenance, and dependable operation.

• FB20 Series: Best suited for control cabinets with ample horizontal space and easy terminal access.
• FV20 Series: Ideal for space-constrained cabinets, optimizing vertical space without compromising functionality.

Together, both series provide industries with versatile, durable, and efficient I/O solutions for factory automation, building automation, and other industrial control applications. Cogent tech solutions provide support technical and service for Elco IP20 series .
